EKS 서비스 구축

2023.09.12 - [인프라/AWS] - AWS - EKS 실습

AWS - EKS 실습





프라이빗 VPC 생성

참고

2023.09.12 - [인프라/AWS] - AWS NAT Gateway, NAT Instance

AWS NAT Gateway, NAT Instance







EKS생성

사전 설정

2023.09.05 - [인프라/Kubernetes] - AWS EKS 생성

AWS EKS 생성

참고

EKSCluster 유저에 권한 추가

IAMFullAccess,AmazonVPCReadOnlyAccess,EC2-Security-Group

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "ec2:DescribeSecurityGroups",
                "ec2:DescribeSecurityGroupRules",
                "ec2:DescribeTags"
            ],
            "Resource": "*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "ec2:AuthorizeSecurityGroupIngress",
                "ec2:RevokeSecurityGroupIngress",
                "ec2:AuthorizeSecurityGroupEgress",
                "ec2:RevokeSecurityGroupEgress",
                "ec2:ModifySecurityGroupRules",
                "ec2:UpdateSecurityGroupRuleDescriptionsIngress",
                "ec2:UpdateSecurityGroupRuleDescriptionsEgress"
            ],
            "Resource": [
                "arn:aws:ec2:region:ap-northeast-2:security-group/*"
            ],
            "Condition": {
                "StringEquals": {
                    "aws:ResourceTag/Department": "Test"
                }
            }
        },
        {
            "Effect": "Allow",
            "Action": [
                "ec2:ModifySecurityGroupRules"
            ],
            "Resource": [
                "arn:aws:ec2:region:ap-northeast-2:security-group-rule/*"
            ]
        }
    ]
}

k8s  생성

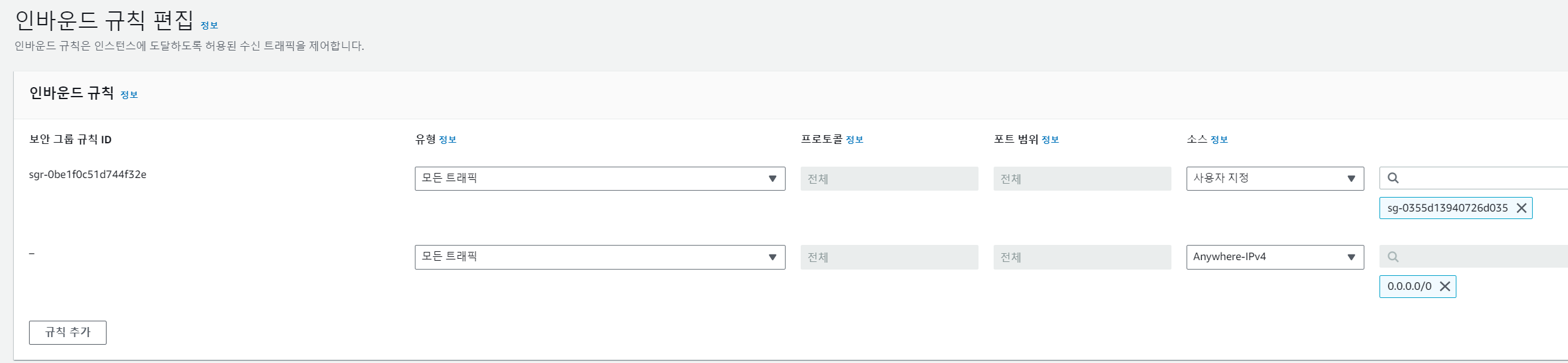

cluster 인바운드 규칙 수정

Bastion(NAT Instance)서버에

kubectl 설치

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
chmod +x kubectl
sudo mv ./kubectl /usr/local/bin/kubectl

aws-cli설치

curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
apt install unzip
unzip awscliv2.zip
sudo ./aws/install

그 후 cli에 만들어두었던 유저로 로그인

aws configure
AWS Access Key ID [None]:  [아이디 값]
AWS Secret Access Key [None]: [키 값]
Default region name [None]: ap-northeast-2
Default output format [None]:

aws cli를 통해 kubectl 설정 적용

aws eks update-kubeconfig --region ap-northeast-2 --name k8s-cluster

IAM role 생성

정책 연결

노드 그룹 생성

deployment 적용

aws-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-web-server1
spec:
  replicas: 4
  selector:
    matchLabels:
      app: my-web-server1
  template:
    metadata:
      name: my-web-server1
      labels:
        app: my-web-server1
    spec:
      containers:
        - name: my-web-server1
          image: sihyun2/firstservice:v1

테스트
